Skyentific

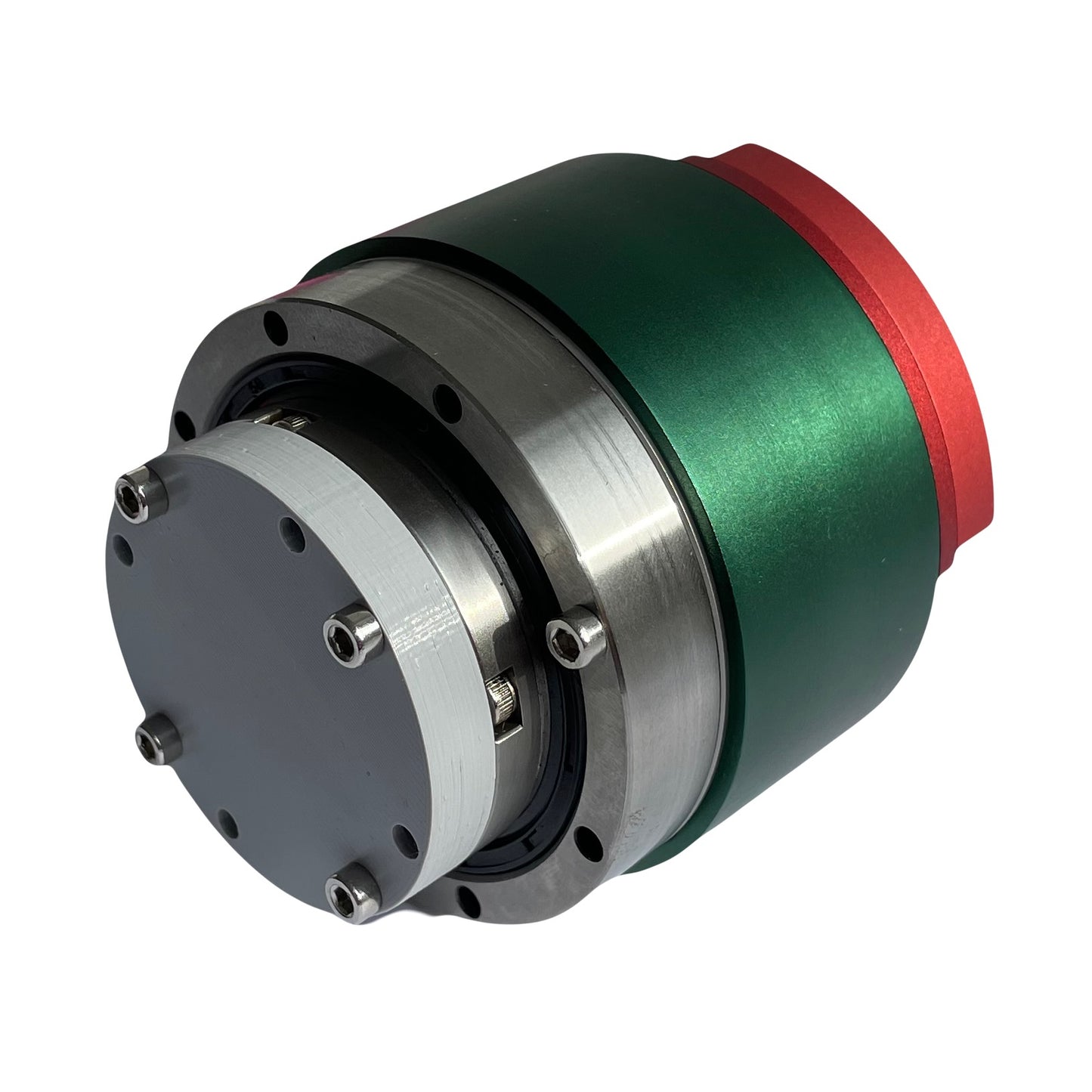

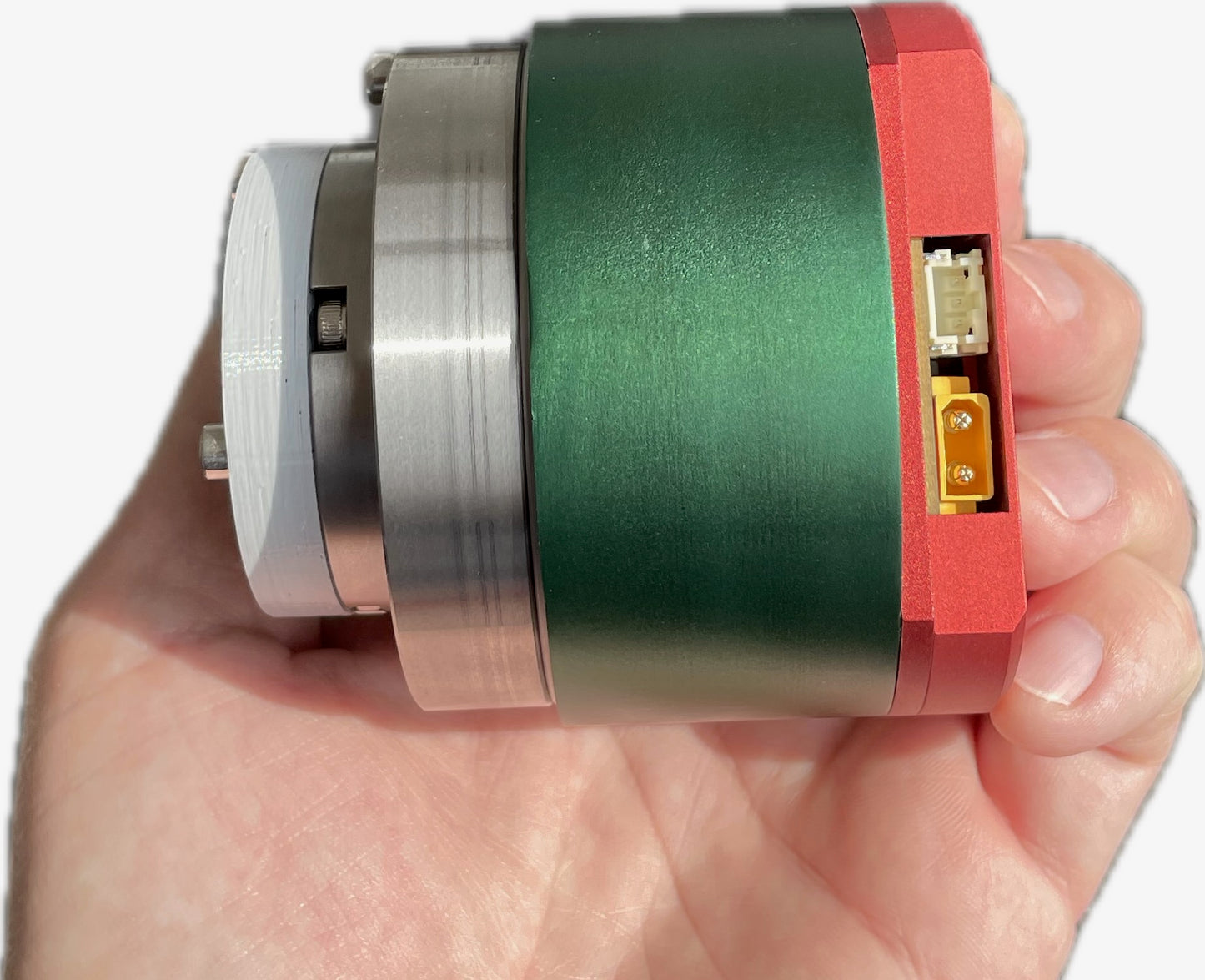

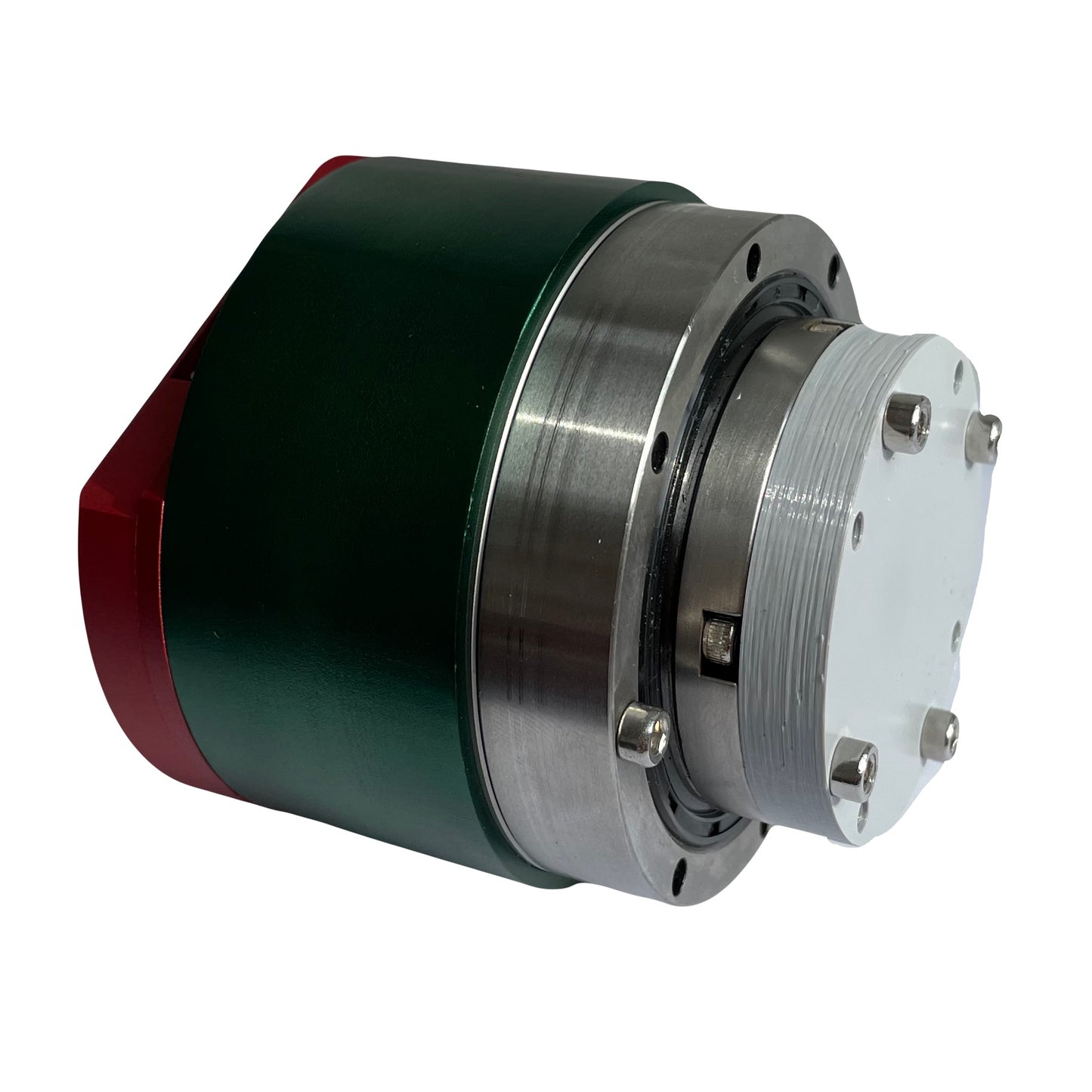

H14 Harmonic Actuator 6.5Nm

H14 Harmonic Actuator 6.5Nm

Regular price $972.00 USD
Regular price $1,296.00 USD Sale price $972.00 USD
Sale Sold out
Tax included.

Control by CAN_FD

Advanced Moteus Driver.

Maximum Torque: 22Nm

Rated speed: 24RPM

Rated Torque: 6.5Nm

Reduction ration: 50:1

Backlash: 20arcsec

Weight: 740g

Voltage: 24-48V

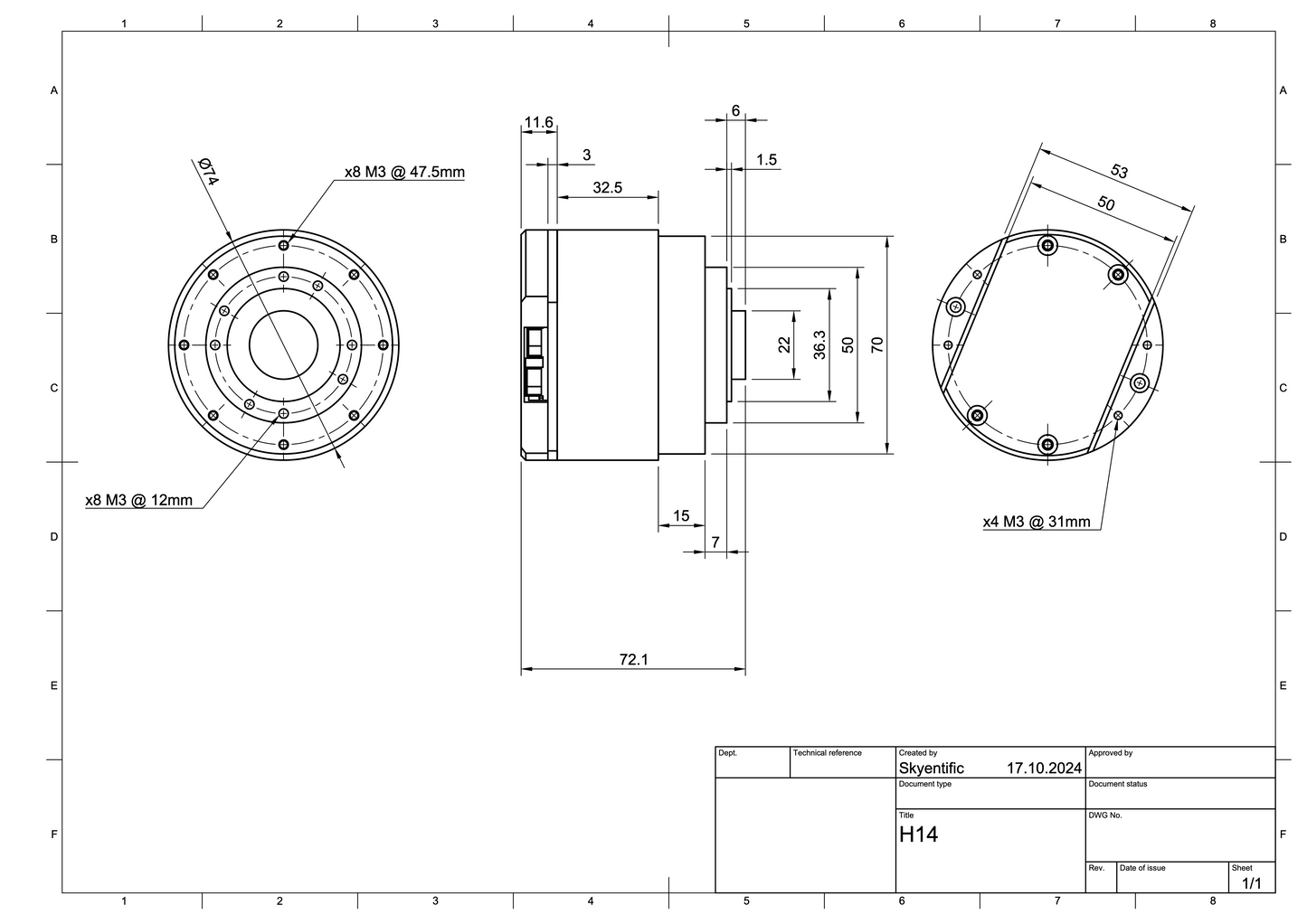

Size: 74mm x 72.1mm (diameter x height)

Clear manual.

Example program (python, Arduino)

The lead time is from 2 to 6 weeks. If you need it urgently try to send me an email to info at skyentific.com
