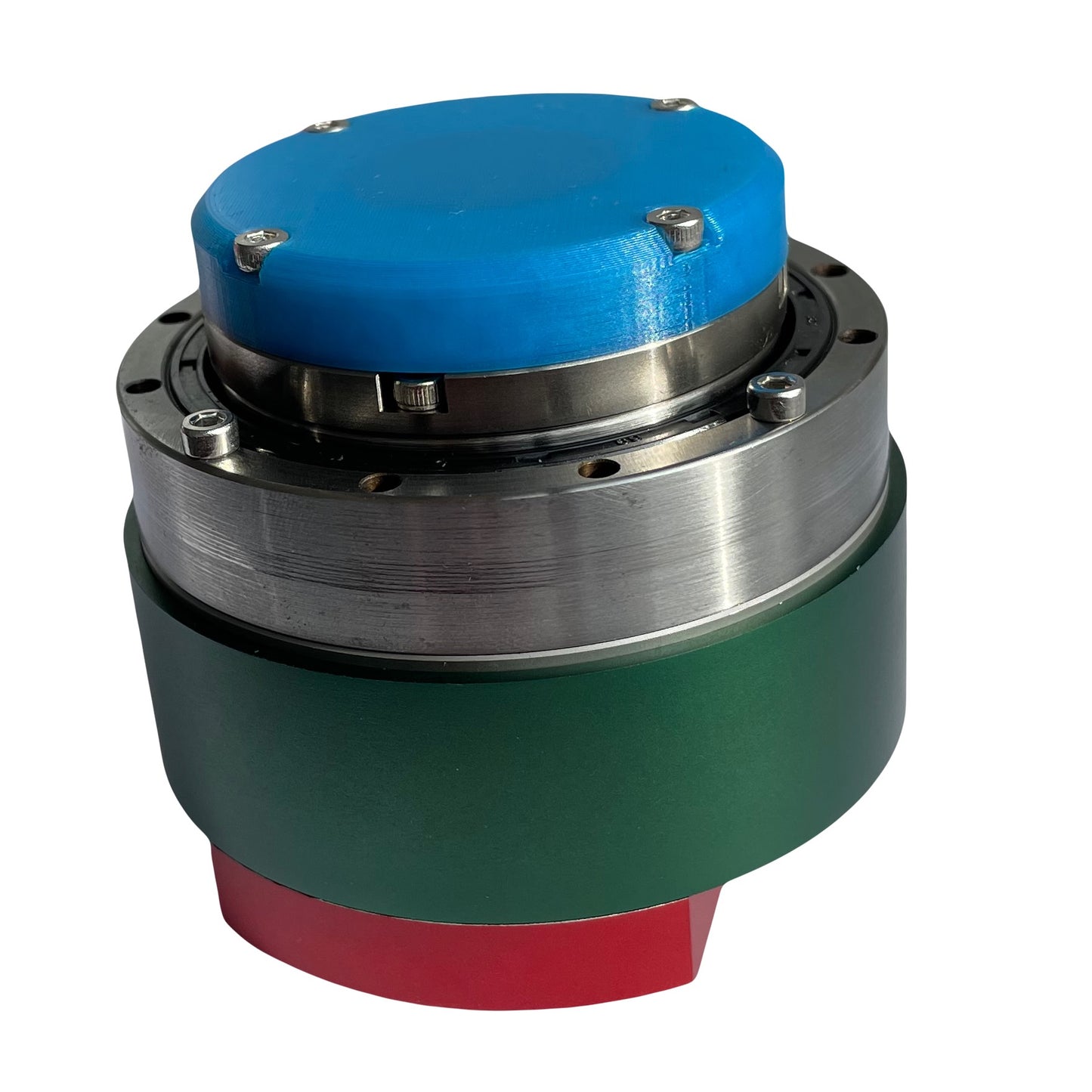

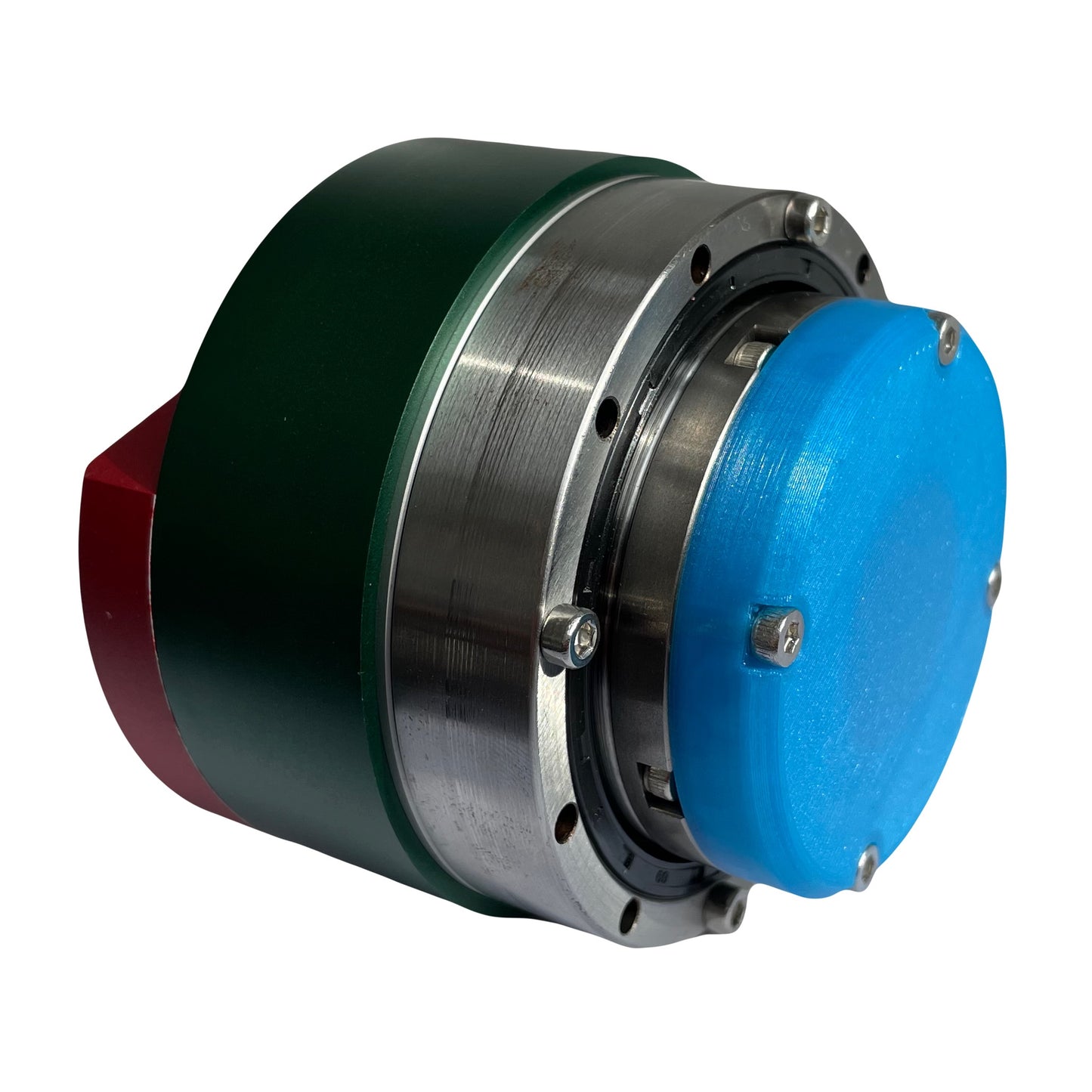

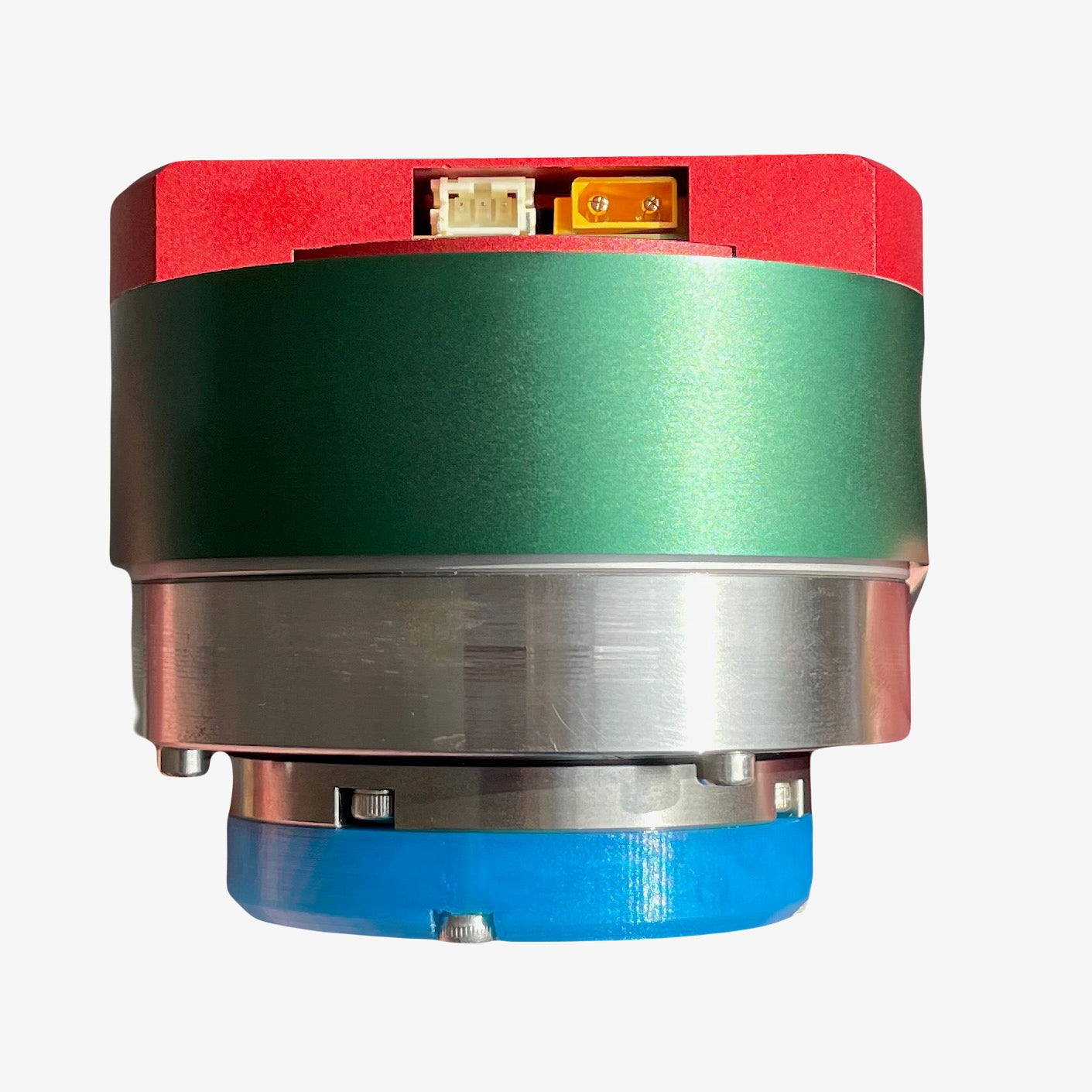

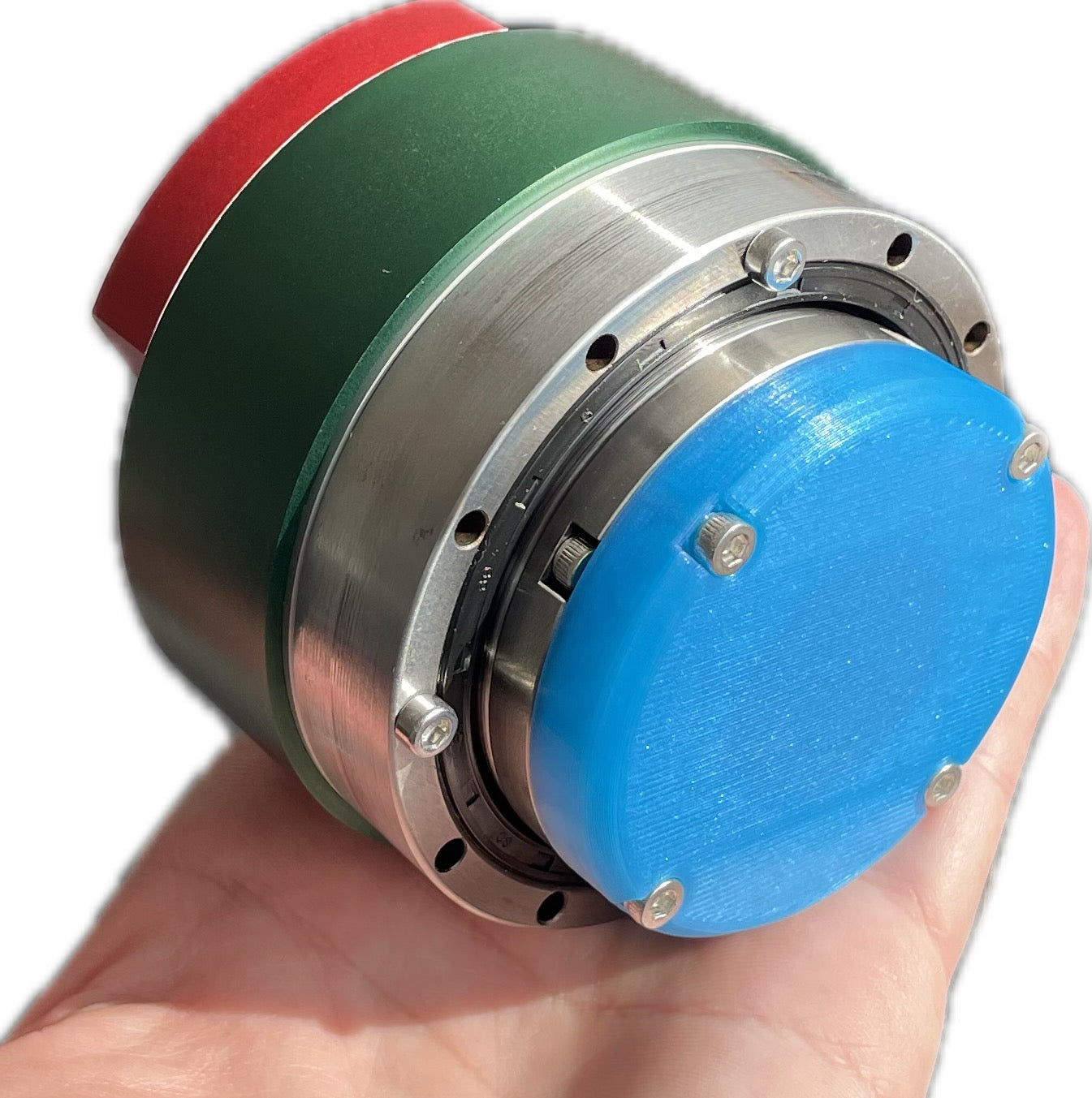

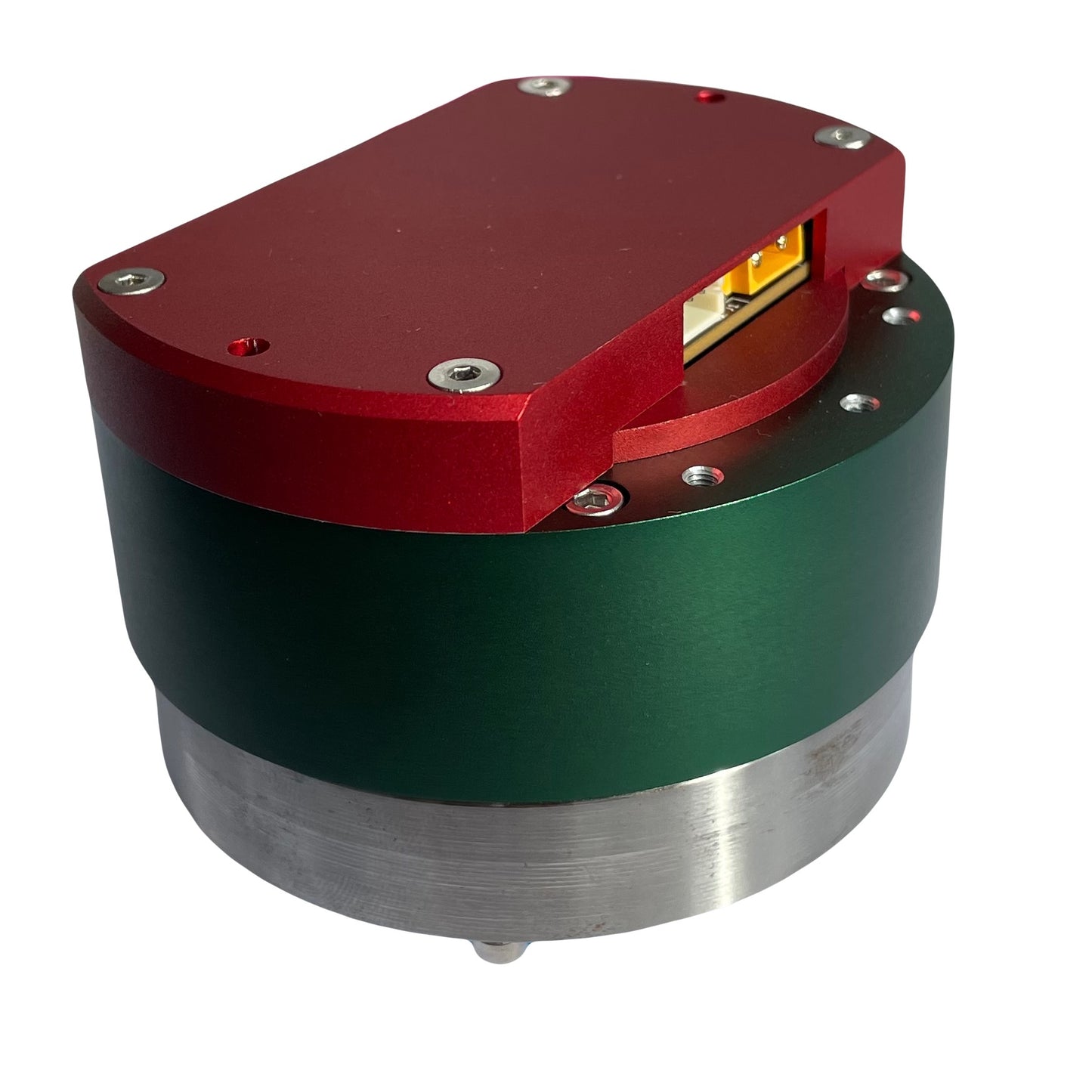

H17 Harmonic Actuator 19Nm

YouTube video about how to use it

Control by CAN_FD

Advanced Moteus Driver.

Maximum Torque: 40Nm

Rated speed: 24RPM

Rated Torque: 19Nm

Reduction ration: 50:1

Backlash: 20arcsec

Weight: 950g

Voltage: 24-48V

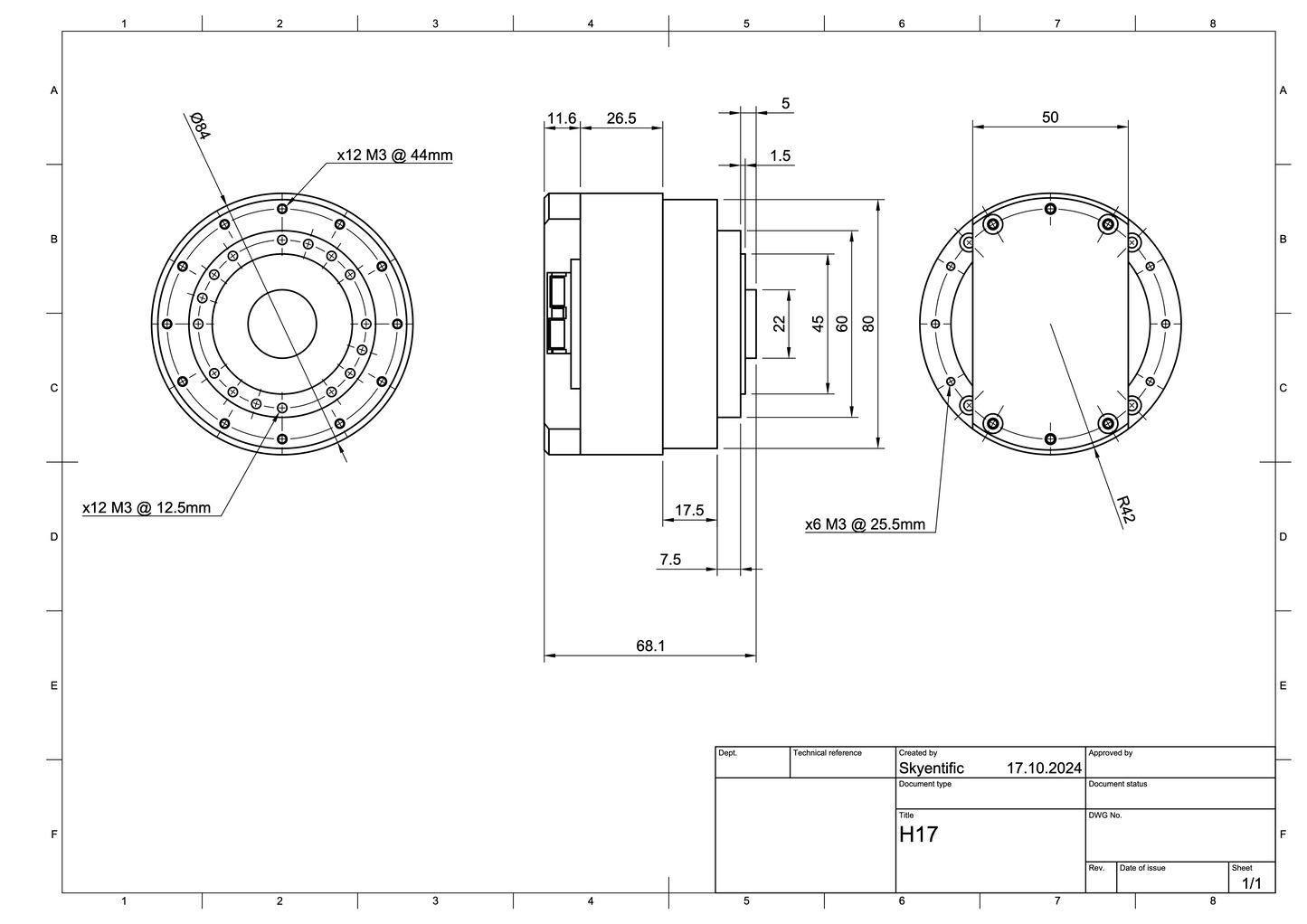

Size: 84mm x 68.1mm (diameter x height)

Clear manual.

Example program (python, Arduino)

The lead time is from 2 to 6 weeks. If you need it urgently try to send me an email to info at skyentific.com
