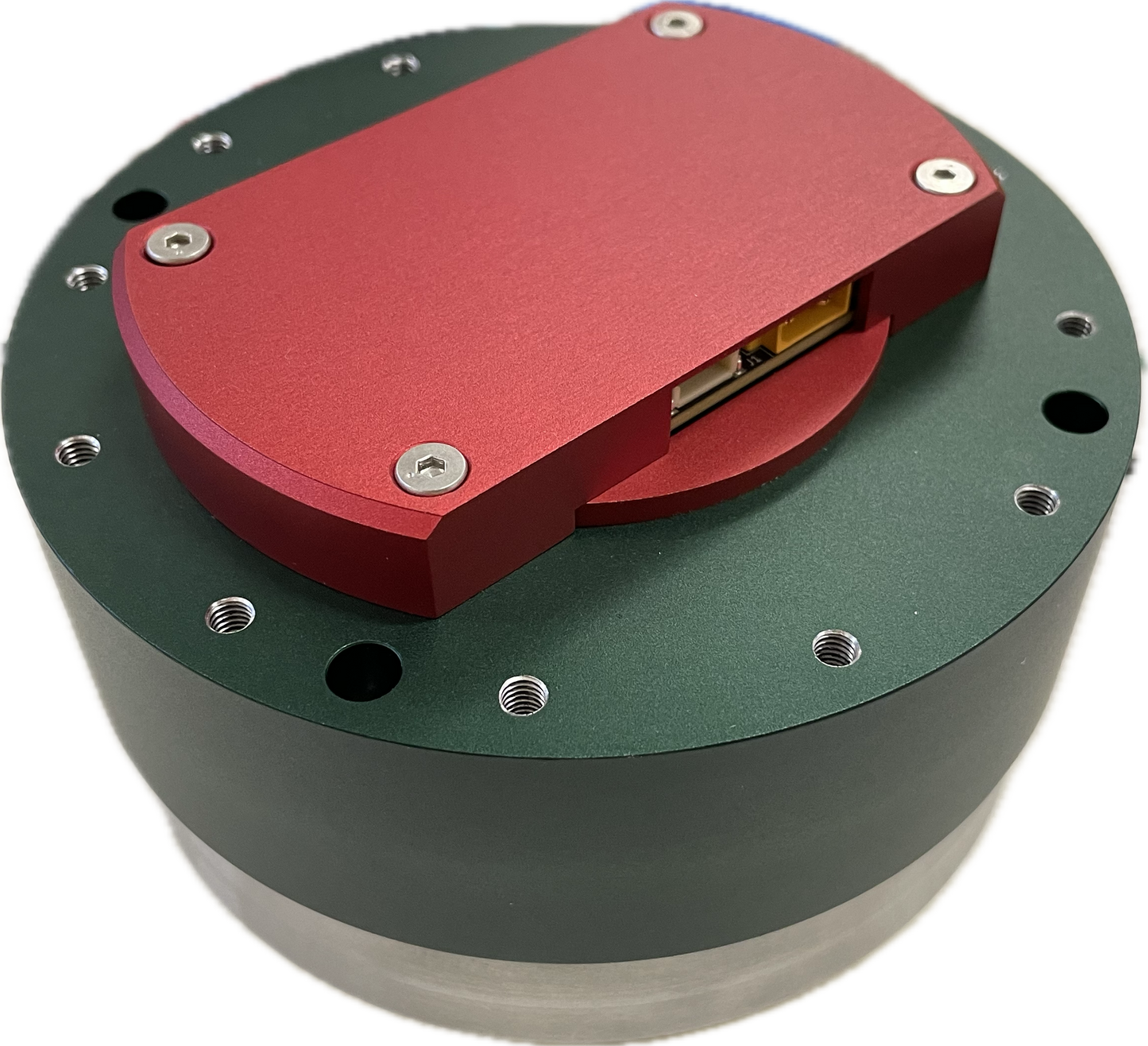

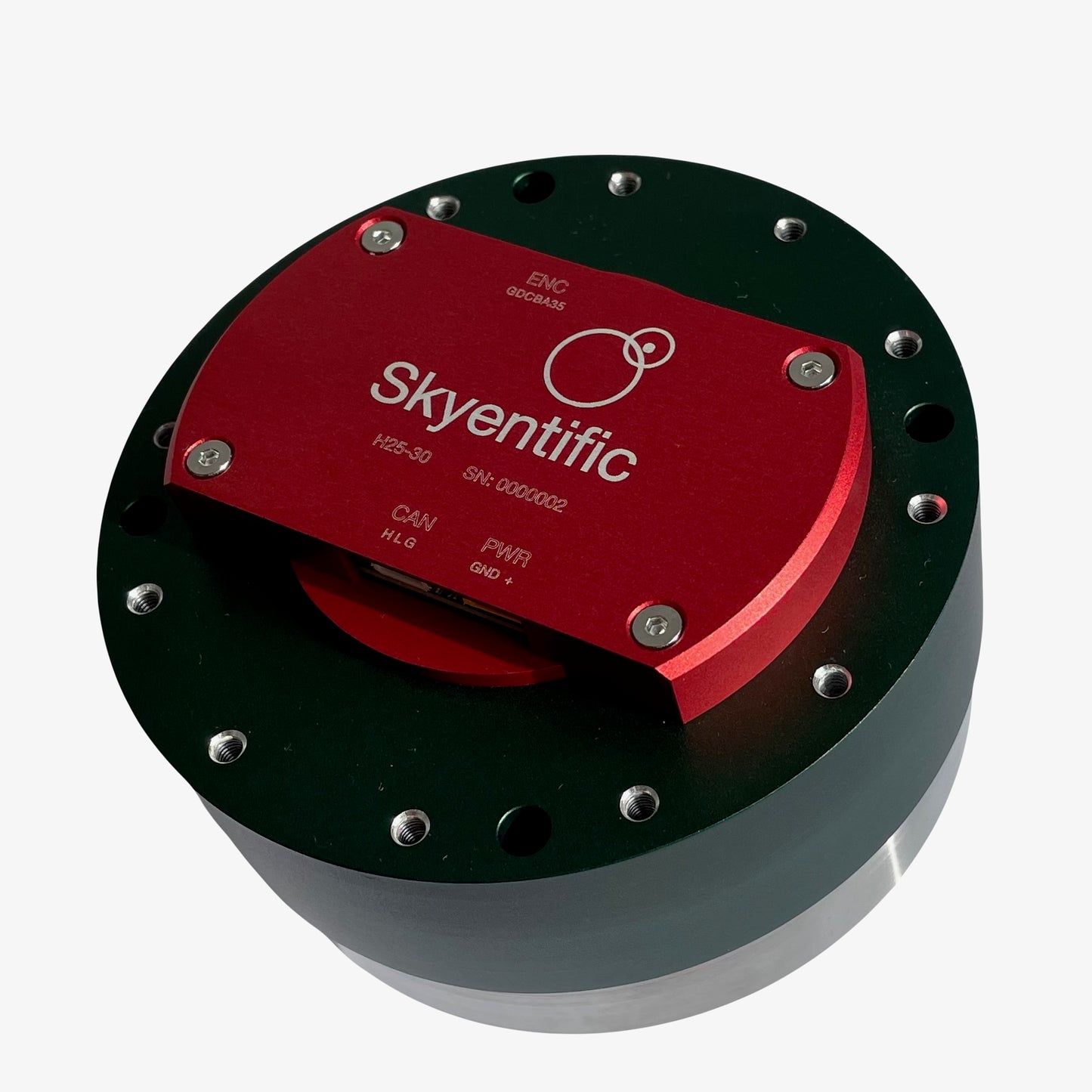

H25 Harmonic Actuator 48Nm

YouTube video about how to use it

Control by CAN_FD

Advanced Moteus Driver.

Maximum Torque: 120Nm

Rated speed: 24RPM

Rated Torque: 48Nm

Reduction ration: 50:1

Backlash: 20arcsec

Weight: 2020g

Voltage: 24-48V

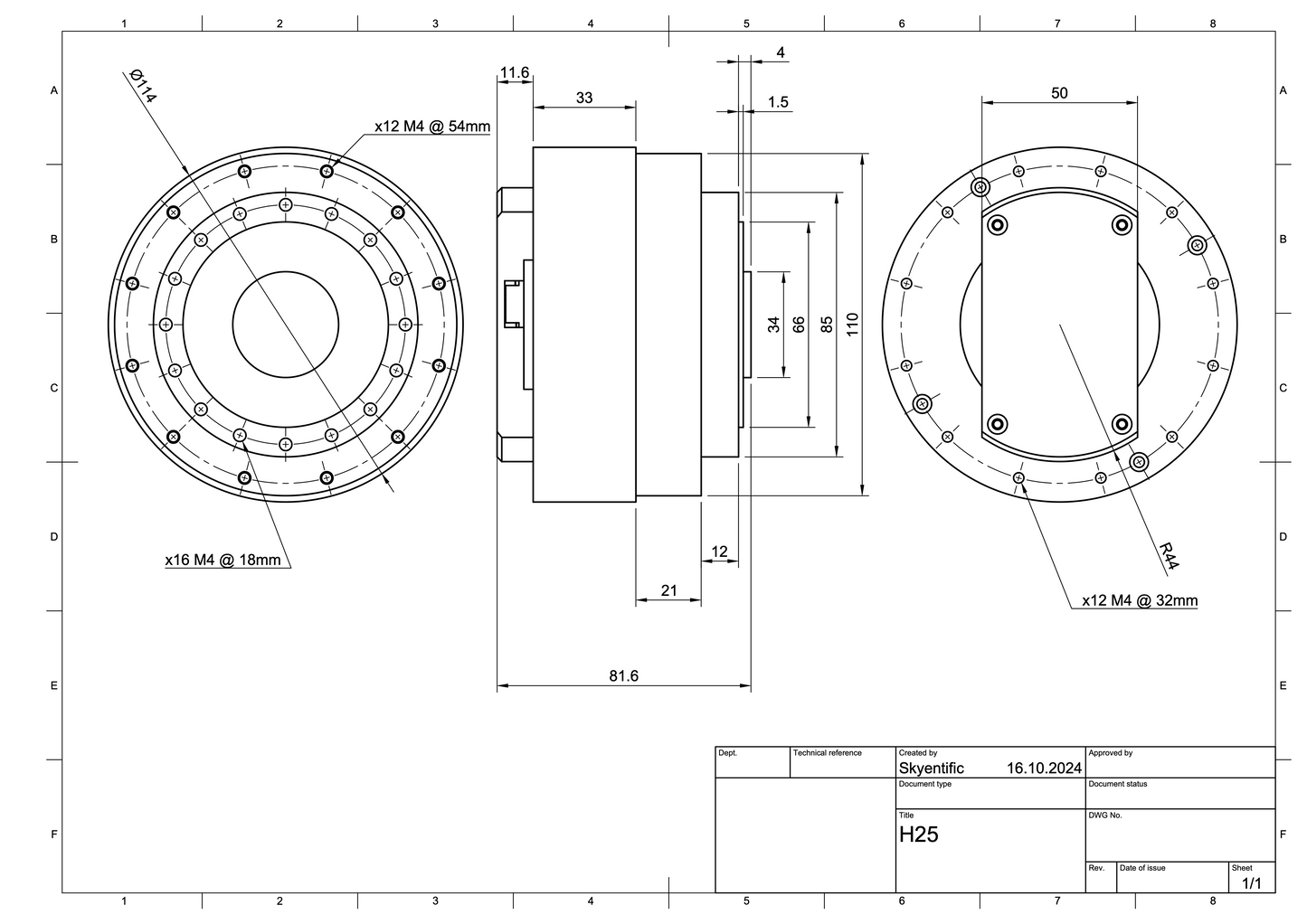

Size: 114mm x 81.6mm (diameter x height)

Clear manual.

Example program (python, Arduino)

The lead time is from 2 to 6 weeks. If you need it urgently try to send me an email to info at skyentific.com
